• Electric shift-on-the-fly transfer case -inc: manual-locking front hubs, instrument panel auto rotary control
• 4-wheel drive
• 72 amp/hr (650 CCA) battery
• 157-amp HD alternator
• Trailer tow pkg -inc: 7-wire harness w/relays, 7/4 pin combination connector
• 12.5K trailer hitch receiver -inc: 2" hitch
• Trailer brake controller *Compatible w/select electric over hydraulic brakes*

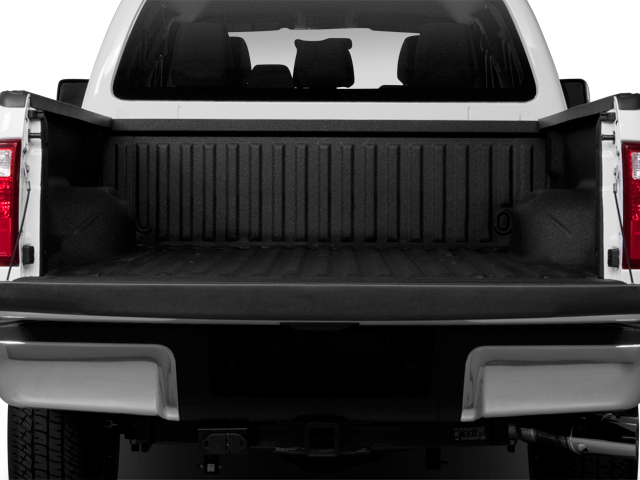

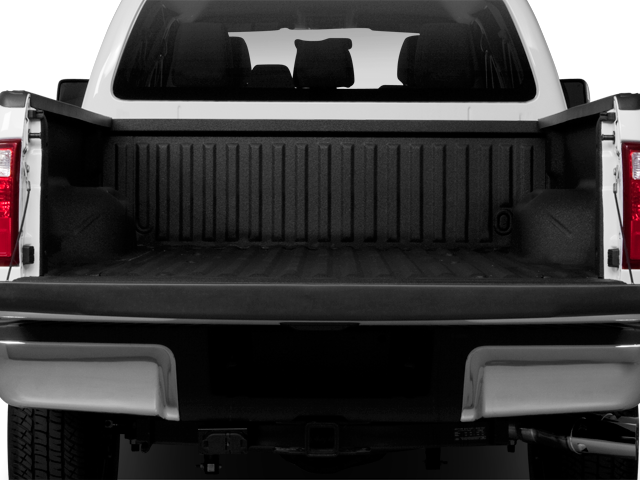

• 6-3/4' pickup box -inc: (4) tie-down hooks, partitionable & stackable storage
• (2) front tow hooks
• Mono-beam front axle w/coil spring suspension
• HD gas shock absorbers
• Front stabilizer bar
• Pwr steering w/steering damper
• Pwr 4-wheel disc brakes w/vacuum boost
• 2-ton mechanical jack

• (5) LT275/65R18E all-season BSW tires

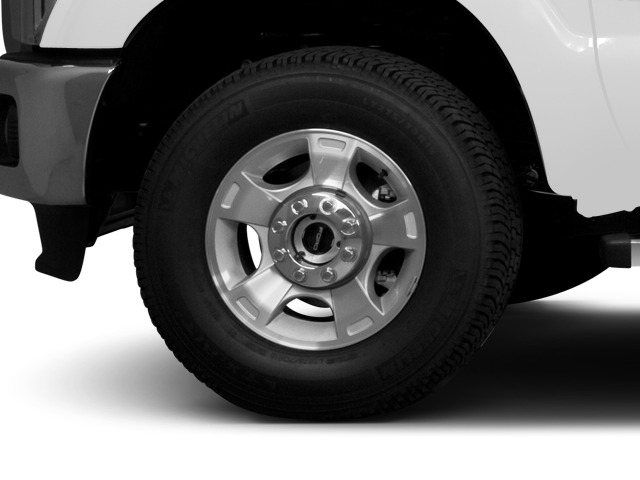

• 18" 6-spoke bright machined cast aluminum wheels -inc: bright center ornaments
• Full-size spare tire w/lock & carrier
• Chrome front bumper w/grained top cover
• Chrome rear bumper
• Front fender vents
• Box-rail & tailgate top-edge moldings

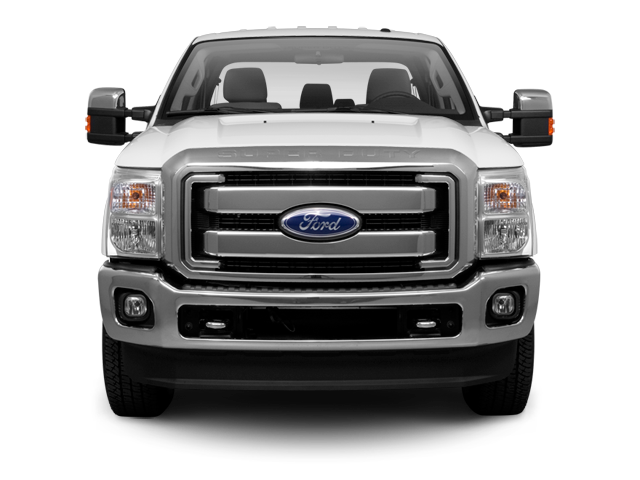

• Grille w/medium platinum insert & chrome surround
• Autolamp/rainlamp dual beam halogen headlamps
• Fog lamps
• Pickup box/cargo lights
• Underhood service light
• PowerScope pwr telescoping & folding heated trailer tow mirrors -inc: turn signals, integrated clearance lights, heated convex spotter mirror
• Solar tinted glass
• Rear privacy glass
• Pwr sliding rear window
• Interval windshield wipers
• Front/rear license plate brackets
• Body-color door handles

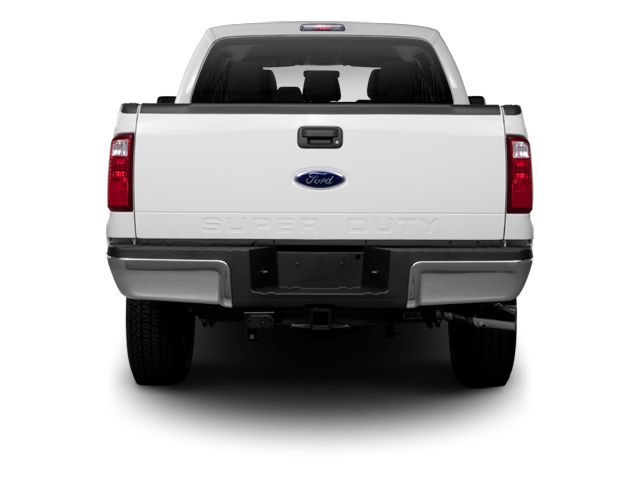

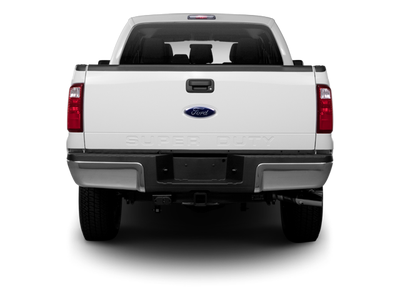

• Removable locking tailgate w/black handle & TailGate Assist

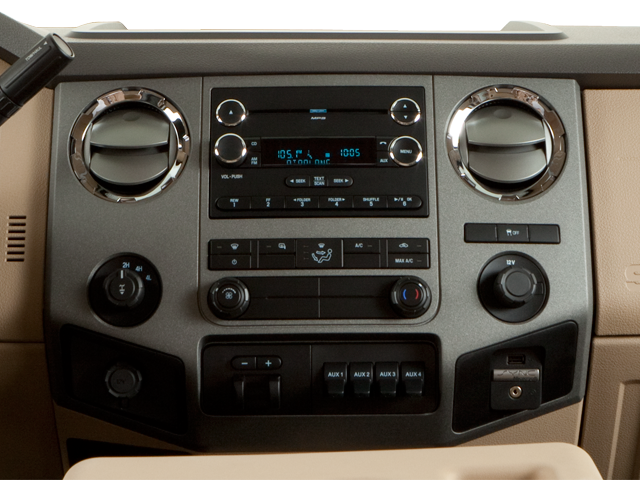

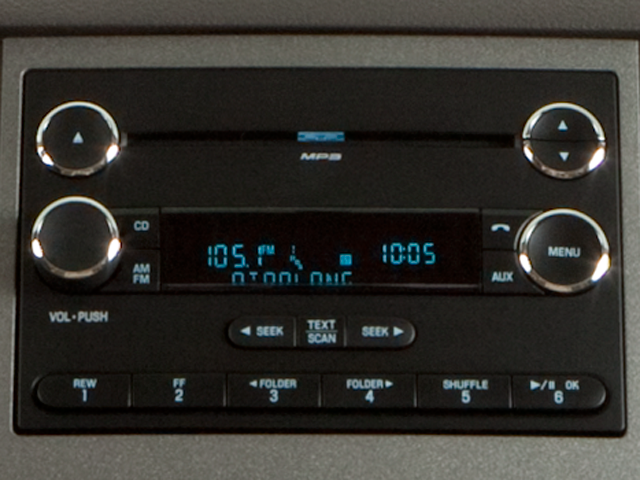

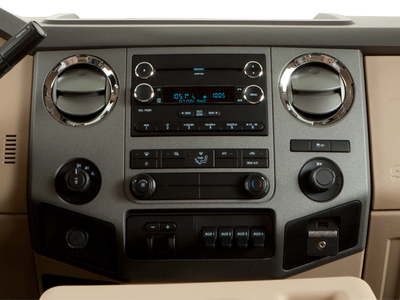

• Premium AM/FM stereo w/CD/MP3 player -inc: clock, (8) speakers, subwoofer, aux audio input jack
• SIRIUS satellite radio
• SYNC voice activated communications & entertainment system -inc: Bluetooth® capability, steering wheel audio controls, USB port, audio input jack, 911 Assist, vehicle health reports, turn-by-turn navigation, real-time traffic

• Dual zone electronic automatic temperature control (DEATC)

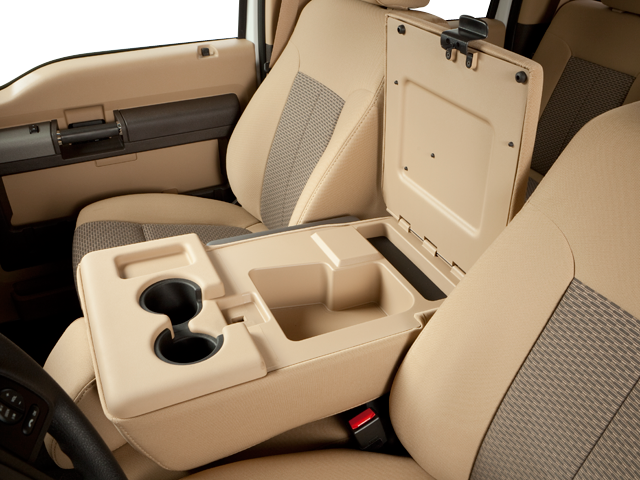

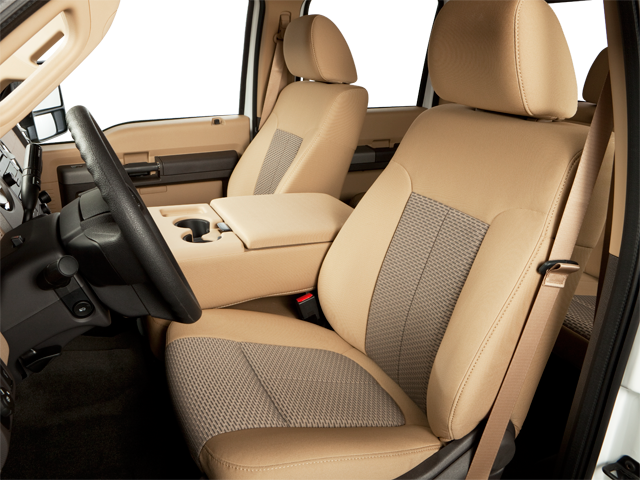

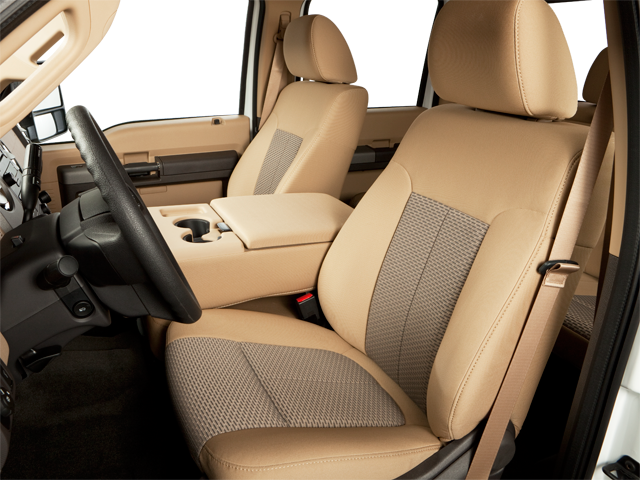

• Premium leather 40/console/40 front seats -inc: monotone leather insert, (2) aux pwr outlets in console
• 10-way pwr driver & front passenger seats

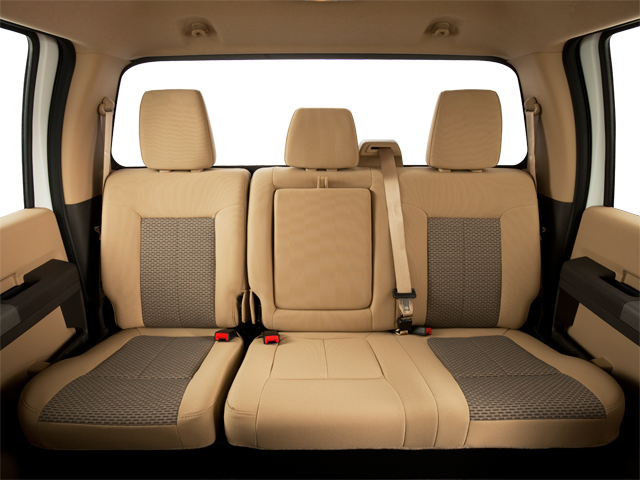

• 60/40 flip-up/fold-down rear split bench seat -inc: dual cupholders in armrest, underseat partitioned lockable storage w/aux pwr outlet, (3) head restraints
• Rear armrests w/cupholders
• Color-keyed carpet full-floor covering
• Front/rear color-keyed carpeted floor mats
• Color-keyed scuff plates
• Tilt/telescoping steering column

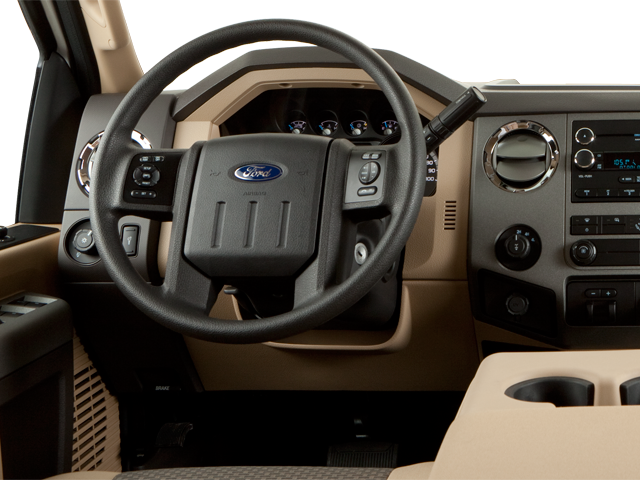

• Color-keyed leather-wrapped steering wheel w/audio & SYNC controls
• LCD productivity screen -inc: driver configurable enhanced information 4.2" display, menus for gauge setup, trip computer, fuel economy, towing/off-road applications, (5) button message control on steering wheel
• Oil minder system

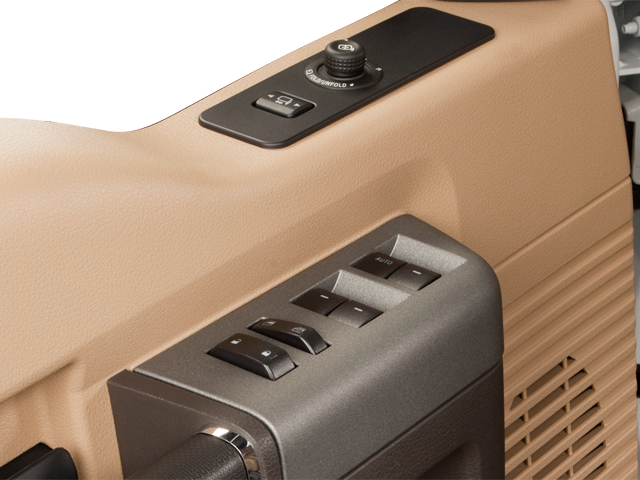

• Pwr windows w/driver one-touch-down & backlit switches
• Accessory delay
• Pwr door locks w/backlit switches, autolock & auto unlock, SecuriCode keyless entry keypad
• Pwr adjustable pedals
• Remote keyless entry & perimeter anti-theft alarm
• SecuriLock anti-theft ignition
• Cruise control
• 3-blink lane change signal
• (4) air registers w/positive shut-off
• (2) aux pwr outlets in instrument panel
• 110V/150W inverter aux pwr outlet in rear console
• Dash-top tray

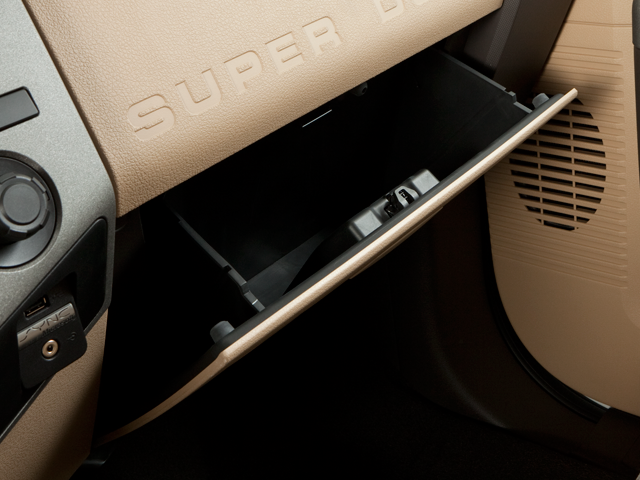

• Glove box

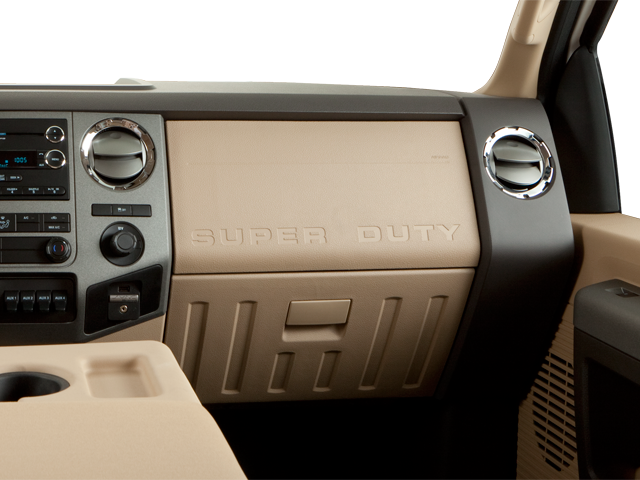

• Secondary glove box
• Instrument panel mounted storage bin & trash bag hook
• Instrument panel mounted dual cupholders
• Color-keyed door trim panel -inc: soft armrest, grab handle, reflector, dark foundry upper applique, upper & lower map pockets
• Electrochromic rearview mirror w/compass
• Overhead console -inc: storage bins for garage door opener & sunglasses
• Color-keyed cloth headliner -inc: integrated SYNC microphone
• Front passenger-side roof ride handle
• Rear seating roof ride handles
• Driver & front passenger grab handles
• Dual color-keyed vinyl sunvisors-inc: driver-side map strap, dual covered lighted mirrors
• Front door operated dome lamp w/time delay off & IP switch
• Front/rear map lamps
• Dual color-keyed coat hooks

• 4-wheel anti-lock braking system (ABS)
• AdvanceTrac w/roll stability control (RSC)
• Hill start assist control
• Trailer sway control
• Driver & front passenger airbags
• Driver & front passenger side air bag/curtain
• Reverse vehicle aid sensor
• SOS post crash alert system
• Color-keyed safety belts w/front seat outboard height adjustable D-rings
• BeltMinder seatbelt-not-buckled chime & flashing warning light
• Rear door child safety locks
• Child seat tethers on all rear passenger seats
• Tire pressure monitoring system

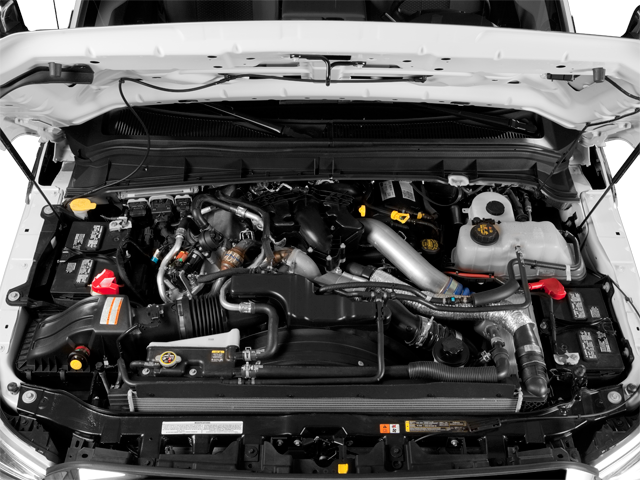

6.7L 32-VALVE POWER STROKE V8 DIESEL ENGINE

• diesel emission fluid system
• engine exhaust braking in tow/haul mode
• 750 CCA 78-AH dual batteries
• intelligent oil life minder
• 14K trailer hitch receiver w/2.5" trailer hitch & 2" reducer sleeve

• Brake assist system
• Selective service internet access
• Cruise control with steering wheel mounted controls
• Leather front seat upholstery
• Driver seat power reclining
• lumbar support
• cushion tilt
• fore/aft control and height adjustable control
• Part-time 4WD
• Powerstroke 6.7L V-8 diesel direct injection
• intercooled turbo
• diesel
• engine with 400HP
• Powerstroke 6.7L V-8
• MyKey restricted driving mode/alerts
• SecuriCode external keypad door lock control
• Mechanical
• Bluetooth® wireless audio streaming
• Dual-zone front climate control
• SecuriLock immobilizer
• Bluetooth® handsfree wireless device connectivity
• Trailer brake controller
• Trailer sway control
• SYNC external memory control
• PowerScope power extendable trailer mirrors
• AdvanceTrac w/Roll Stability Control electronic stability control system with anti-roll
• Hill start assist
• Leather rear seat upholstery
• Automatic climate control
• Rear parking sensors
• 0.150 kW
• Front fog lights
• Leather steering wheel
• Manual rear child safety door locks
• Heated driver and passenger side door mirrors
• Power folding door mirrors
• Manual tilting steering wheel
• Manual telescopic steering wheel
• Chrome hub wheel covers
• Power adjustable pedals
• 18 x 8-inch front and rear machined aluminum wheels
• LT275/65SR18 AS BSW 652 RPM front and rear tires
• 6 airbags
• Driver front impact airbag
• Seat mounted side impact driver airbag
• Safety Canopy System curtain first and second-row overhead airbags
• Passenger front impact airbag
• Seat mounted side impact front passenger airbag
• Auto-locking doors
• Power rear windshield
• Intercooled turbo
• TorqShift 6-speed automatic
• Selectable mode transmission
• Rear under seat climate control ducts
• Rear console climate control ducts
• 5 12V power outlets

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Cold Cranking Amps @ 0° F (Primary): 650
• Cold Cranking Amps @ 0° F (2nd): 750
• Maximum Alternator Capacity (amps): 157
• Maximum Alternator Watts: 2100
• Cooling System
• Total Cooling System Capacity (qts): 27.8
• Total Cooling System Capacity (qts): 21.0
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 5600
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Rear (lbs): 6290
• Curb Weight - Front (lbs): 4551
• Curb Weight - Front (lbs): 3978
• Curb Weight - Rear (lbs): 3018
• Curb Weight - Rear (lbs): 2967
• Gross Vehicle Weight Rating Cap (lbs): 11300
• Gross Vehicle Weight Rating Cap (lbs): 11000
• Gross Combined Wt Rating (lbs): 19000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 14000
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 11900
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 2100
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1785
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 15800
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 11900
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3950
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2975
• Suspension
• Suspension Type - Front: Coil Spring
• Suspension Type - Rear: 2-Stage Leaf Spring
• Spring Capacity - Front (lbs): 5600
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 6290
• Axle Type - Front: Monobeam
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 6000
• Axle Capacity - Rear (lbs): 7280
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 35.1
• Shock Absorber Diameter - Rear (mm): 35.1
• Stabilizer Bar Diameter - Front (in): 1.10
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.7 x 0.5
• Rear Brake Rotor Diam x Thickness (in): 13.4 x 0.3
• Tires
• Front Tire Order Code: TCH
• Rear Tire Order Code: TCH
• Spare Tire Order Code: - TBD -
• Front Tire Size: LT275/65R18E
• Rear Tire Size: LT275/65R18E
• Spare Tire Size: LT275/70R18E
• Front Tire Capacity (lbs): 3415
• Rear Tire Capacity (lbs): 3415
• Spare Tire Capacity (lbs): 3415
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 18 x 8.0
• Rear Wheel Size (in): 18 x 8.0
• Spare Wheel Size (in): 18 x 8.0
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 20.4
• Steering Ratio (:1), At Lock: 20.4
• Turning Diameter - Curb to Curb (ft): 51.8
• Turning Diameter - Wall to Wall (ft): 53.7
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26.0
• Fuel Tank Location: Midship
• Exterior Dimensions
• Wheelbase (in): 156.2
• Length, Overall w/o rear bumper (in): 246.8
• Width, Max w/o mirrors (in): 79.9
• Height, Overall (in): 80.8
• Overhang, Front (in): 38.1
• Overhang, Rear w/o bumper (in): 52.4
• Front Bumper to Back of Cab (in): 154.2
• Cab to Axle (in): 39.9
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 37.8
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 8.2
• Ground Clearance, Rear (in): 8.2
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 81.8
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 50.9
• Cargo Box (Area) Height (in): 20.0
• Tailgate Width (in): 60.6
• Cargo Volume (ft³): 64.1
• Interior Dimensions
• Passenger Capacity: 4
• Front Head Room (in): 40.7
• Front Leg Room (in): 41.1
• Front Shoulder Room (in): 68.0
• Front Hip Room (in): 67.6
• Second Head Room (in): 40.8
• Second Leg Room (in): 42.1
• Second Shoulder Room (in): 68.1
• Second Hip Room (in): 67.6
• Summary

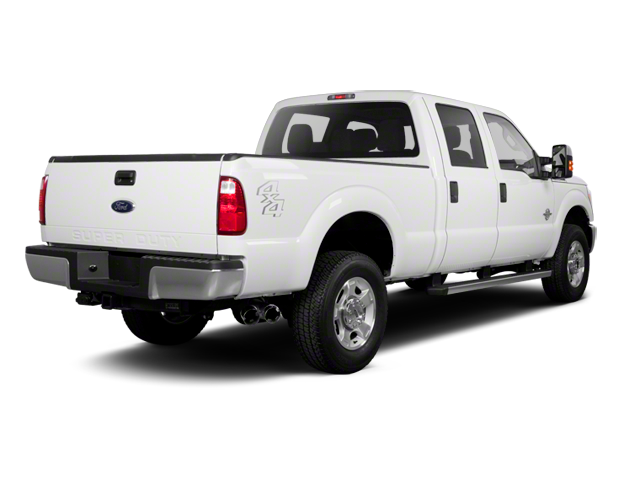

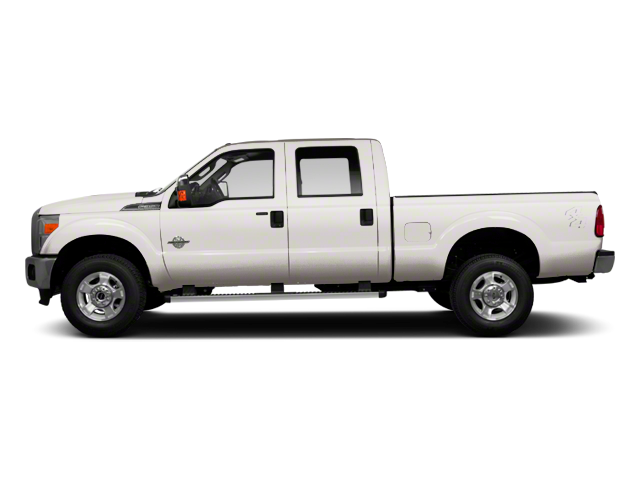

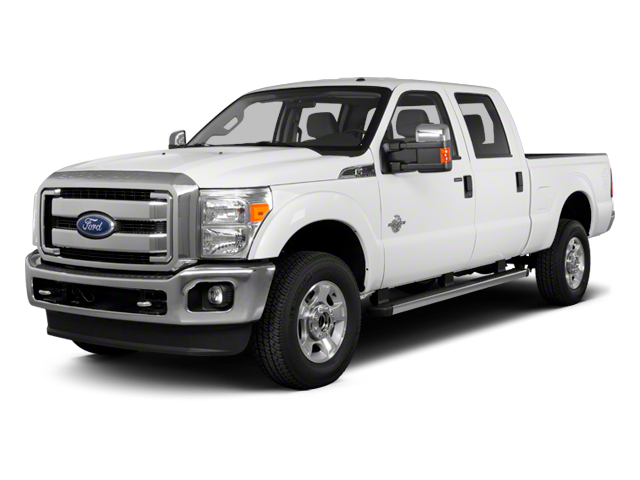

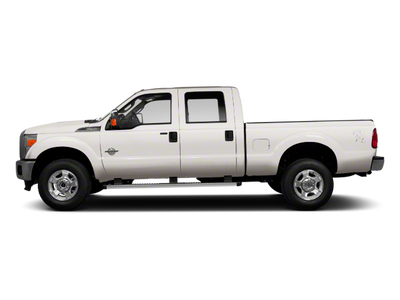

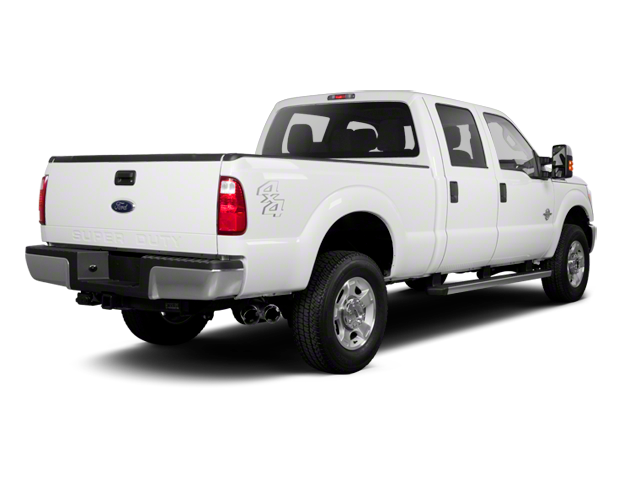

• Vehicle Name: Ford Super Duty F-350 SRW
• Body Style: Crew Cab 6-3/4'
• Body Code: 156" WB
